Ammonia plant revamping

services

• Plant Performance Audits

• Plant De-Bottlenecking

• Revamp for higher Capacity

• Revamp for improved Efficiency

• Basic Engineering of Revamp

• Rerating Primary Reformer

• Reformer Re-harping studies

• Compressors/Turbine Rating

• CO2 Removal System upgrade

• Mole Sieve System upgrade

• Ammonia Loop upgrade

• Ammonia Refrigeration

• Optimizing Steam System

• Cooling Water System upgrade

• Relief System Studies

• Root-cause analysis

• NOx Abatement

• Value Engineering

• 3rd Party Design Reviews

• Critical Equipment Reviews

• Equipment design upgrade

• Cost Estimating

• Project Feasibility

• Technology/Project Evaluation

• Risk Assessment

• Derivatives Feasibilities

Objectives & key benefits

• To improve Capacity, Efficiency and Reliability

• Practical & Cost Effective

• Flexible Economical Approach

Resources & expertise

• MIC™/SIC™ to upgrade Process Air Compressor for higher capacity

• Reformer Rating and Re-harping

• CO2 Removal System Revamps- a/MDEA & Benfield systems

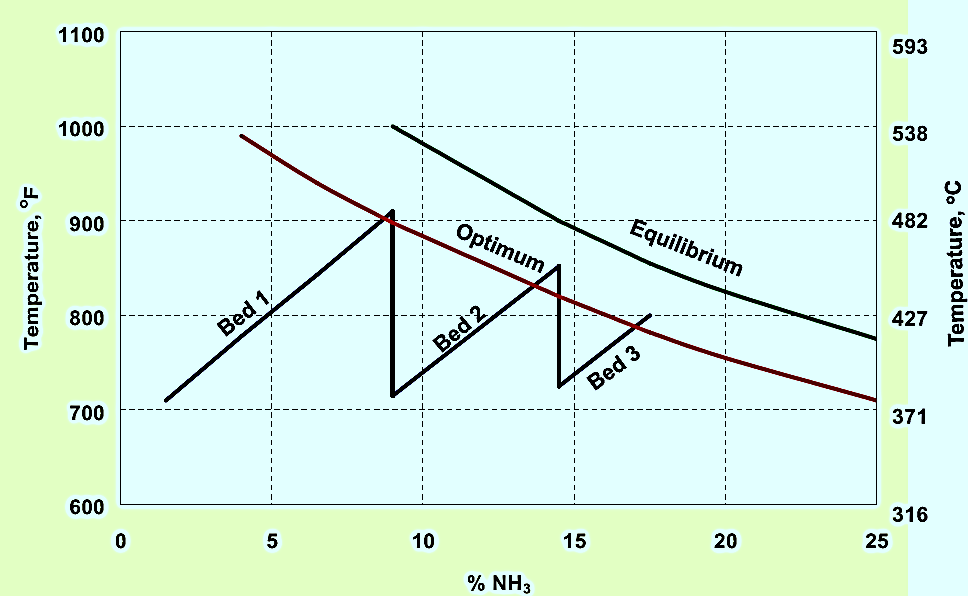

• Rating & Optimizing Converters

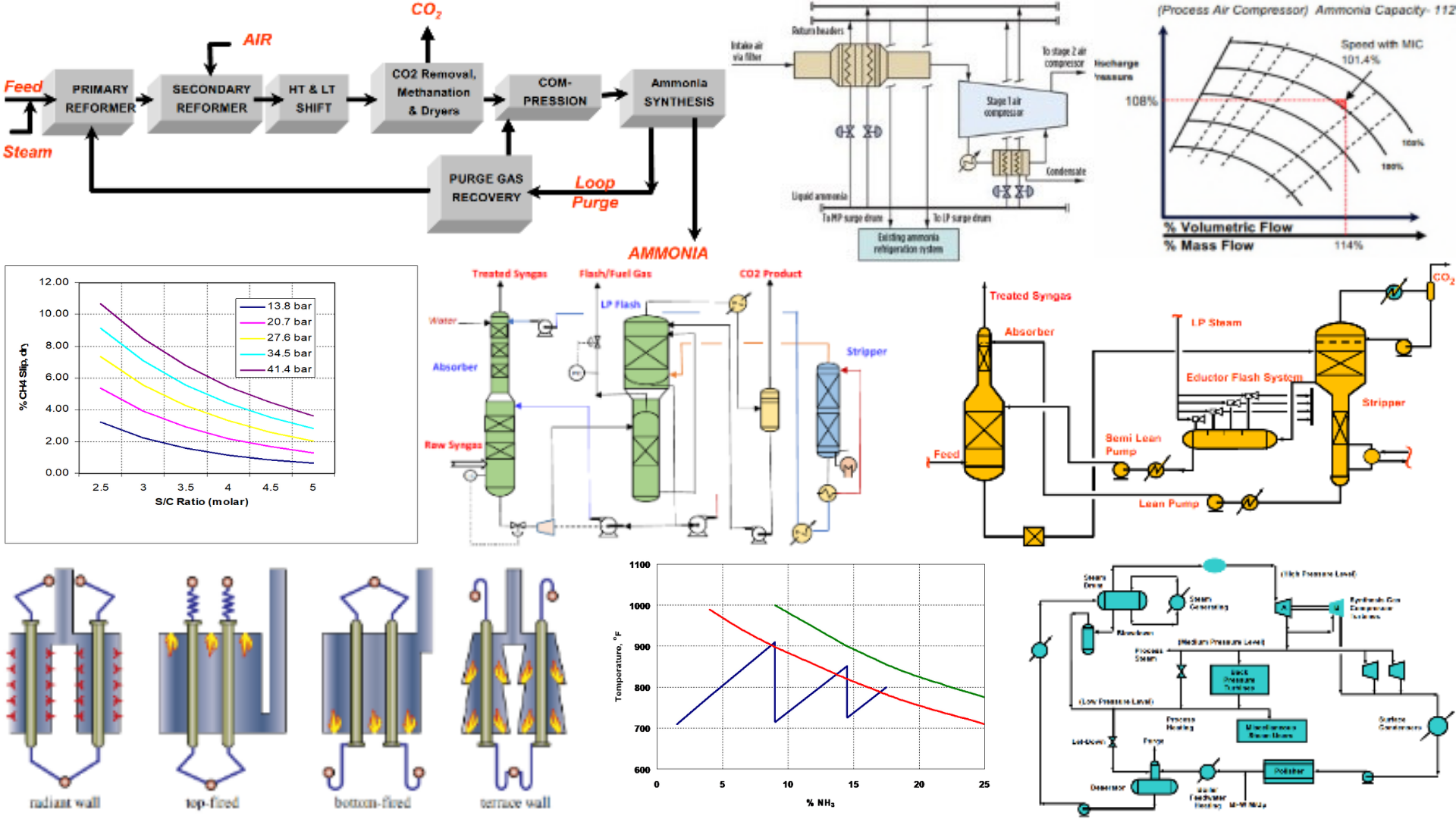

• Modeling of Complete Ammonia

• Plant for all Process Configurations

• Rigorous modeling of Reformers-

• Top, Side & Terrace Fired

• Re-rating Compressors

• Basic Design & Engineering

• Equipment sizing/rating

• Project Cost Estimation

• Experienced Team

References

PCS, CFI, CNC, N2000, AUM, PLNL, CHEMANOL, SABIC,

METHANOL HOLDINGS

*MIC™- “Multistage Integrated Chilling”

*SIC™- “Single-stage Integrated Chilling”

Patent granted (2017)

MIC™/SIC™ in implementation in USA

“Increase Reforming Capacity”, N2 &

Syngas Conference, 2018
